Set Up Mechanically And Programing Of Apollo Robot

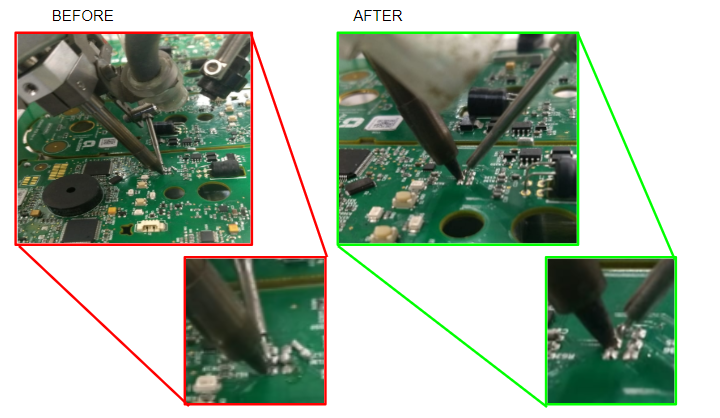

we adjusted the dispenser in front of the tip, also we create the program for top and bottom, the tip that we used is not the ideal, the fixture need a rework in the components of bottom.

We asked to the customer spec of the components to solder and de diameter of the pads. The recomended Tip without the information could be DN-20GDV14-BZ15
